A transit search where a panel of independent reviewers marks dips in blind-coded light curves, consensus is skill-weighted, and every candidate keeps its provenance. Built to follow the Planet Hunters CHEOPS workflow.
Thresholds, weights and every input are written to manifest.json, so a result can be rerun exactly.
Passed candidates are the catalogue. Rejected and flagged events are kept on purpose, so a reader can see what the vetting decided and why.
Every reviewer's answer for every blind-coded subject. Disagreement is kept visible, because it is where the consensus is earned.

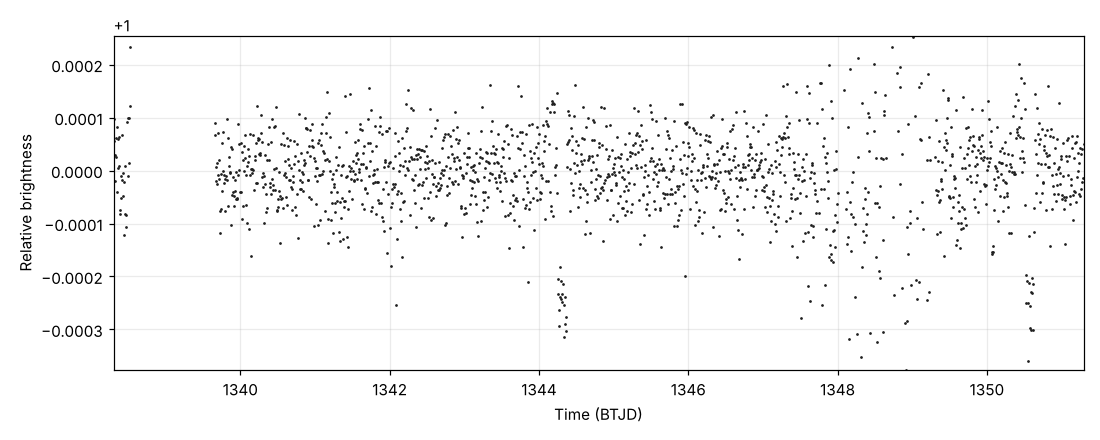

| reviewer | label | marks (BTJD) | rationale |
|---|---|---|---|
| volunteer-sensitive | potential planet | 1344.250–1344.284, 1348.225–1348.589, 1348.923–1348.955, 1350.532–1350.611 | simulated detector |
| volunteer-typical | potential planet | 1344.245–1344.279, 1348.177–1348.629, 1348.918–1348.947, 1349.061–1349.096, 1350.557–1350.625 | simulated detector |
| volunteer-cautious | potential planet | 1344.249–1344.279, 1344.283–1344.366, 1348.107–1348.568, 1348.917–1348.955, 1350.551–1350.619 | simulated detector |
| claude-volunteer | potential planet | 1344.320–1344.470, 1350.450–1350.570 | Two short, sharp drops of about 300 ppm are visible near 1344.4 and 1350.5, each lasting about 3 hours and each made up of several consecutive points. They could be transits, but the scatter is high and increases in the later part of the light curve, so they c |
| claude-skeptic | potential planet | 1344.200–1344.340, 1350.380–1350.510 | Two short, flat-bottomed dips of about 300 ppm at ~1344.27 and ~1350.45 (spacing ~6.2 d) have matching depth and duration, as expected for a periodic transit. Neither shows a V shape, a secondary eclipse, a ramp or a step, but the data around the second dip is |

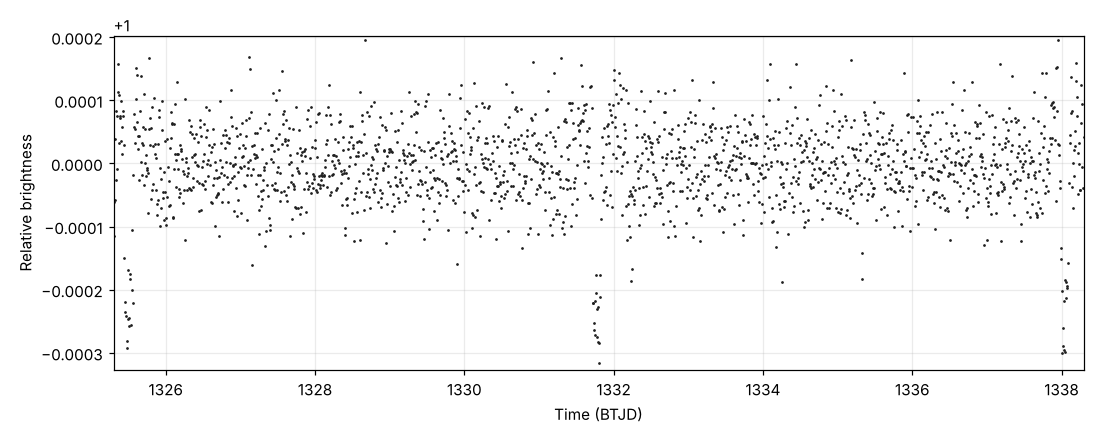

| reviewer | label | marks (BTJD) | rationale |
|---|---|---|---|
| volunteer-sensitive | potential planet | 1325.452–1325.541, 1331.718–1331.822, 1332.197–1332.260, 1338.017–1338.073 | simulated detector |
| volunteer-typical | potential planet | 1325.458–1325.555, 1331.746–1331.804, 1337.999–1338.098 | simulated detector |
| volunteer-cautious | potential planet | 1325.463–1325.530, 1331.724–1331.810, 1338.006–1338.095 | simulated detector |
| claude-volunteer | potential planet | 1325.300–1325.550, 1331.720–1331.900, 1337.970–1338.150 | Three similar dips of about 0.0003 depth, each lasting a few hours, recur at roughly 6.3-day spacing (near 1325.4, 1331.8 and 1338.05). The first falls at the start of the data and the last at the end, so the shapes are only partly covered, but the repeat and |
| claude-skeptic | potential planet | 1325.300–1325.460, 1331.680–1331.840, 1338.030–1338.290 | Three similar flat-bottomed dips about 250-300 ppm deep recur every ~6.3 days, and there is no alternating depth or secondary eclipse. The first and last dips sit at the edges of the data, so they are only partly covered, but the periodic repeat favours a tran |
Run runs/tess-pi-men-s1 (TESS SPOC sector 1, 10-minute bins), run on the current code (scripts/rerun_pi_men.py), with the limb-darkened fit (src/setuhq/transitfit.py). 5 of 5 predicted epochs are recovered by the panel. Limb darkening: Claret 2017 TESS quadratic u₁ = 0.341, u₂ = 0.224 for the TIC's Teff 5992 K and log g 4.36. Reference: NASA Exoplanet Archive, table ps, pl_name = 'pi Men c', fetched 2026-10-19 (docs/results/pi_men_reference.json).
Two lines. **Free**: depth, T14 and k are robust; b, a/R★ and ρ★ are degenerate with five TESS transits, so b is an upper limit when its 1σ set reaches 0 and ρ★ is a range. **With the TIC density prior** (a Gaussian on ρ★, 1.023 ± 0.199 g/cm³): b, a/R★ and T23/T14, to compare with Huang's b = 0.59. Like-for-like comparisons lead: k and T14.
| quantity | free | with the TIC density prior | Huang et al. 2018 | ratio (free / Huang) | archive default (Kunovac Hodzic Et Al 2021) | ratio |
|---|---|---|---|---|---|---|
| Rp/R★ (k) | 0.0179 ± 0.0017 | 0.0165 ± 0.0005 | 0.01703 | **1.05** | 0.01584 | 1.13 |
| T14 (h) | 3.07 ± 0.17 | 2.96 ± 0.04 | 2.953 | **1.04** | 2.952 | 1.04 |
| depth (ppm)¹ | 292 ± 8 | 293 ± 8 | 300 | 0.97 | 268 | 1.09 |
| P (d), fitted near the BLS period | 6.2680 ± 0.0005 | 6.2680 | 6.26790 | |||
| b | b < 0.87 (1σ) | b = 0.64 ± 0.12 | 0.59 | 0.65 | ||
| a/R★ | 8.54 at the best-fit b, unconstrained (1σ 8.32–16.64) | 12.85 (1σ 11.54–13.58) | 13.38 | |||
| T23/T14 | unconstrained | 0.95 | 0.95 (from Huang's b, k, a/R★) | |||
| ρ★ transit (g/cm³) | 1σ range 0.277–2.216 | 1.02 (prior-dominated; no error quoted, as it would only restate the prior's) | 1.159 from M★, R★ |
¹ Depth definitions differ: SetuHQ's is the limb-darkened model's depth at mid-transit; the archive's pl_trandep is the published transit depth as each paper defines it. Compare k and T14 first.
Errors are conservative: the covariance at the best fit (scaled by √χ²ᵣ when above 1) added in quadrature to the spread along the impact-parameter profile (Δχ² ≤ 1), which overlap.
The box measure used before (the mean flux over the panel's marked window): depth 243 ppm, duration 1.90 h, ratios **0.81** and **0.64** against Huang 2018 (0.91 and 0.64 against the archive default row the README used to cite).
ρ★ check (free fit): the transit density against the TIC's 1.023 g/cm³ (consistent within the illustrative 0.3–3 band at 3σ). V-shape test: U-shaped (not grazing).
| subject | epochs | P (d) | depth (ppm) | T14 (h) | b | ρ★ (g/cm³), 1σ range |
|---|---|---|---|---|---|---|
| tess-fa3483ce6f83 | 3 | 6.2681 | 294 ± 10 | 3.17 ± 0.25 | b < 0.94 (1σ) | 0.091–2.249 |
| tess-04b815001aa6 | 2 | 6.2674 | 310 ± 14 | 2.97 ± 0.09 | b < 0.87 (1σ) | 0.270–2.124 |
Depth is the model's mid-transit depth; errors are conservative, as above. Each subject's fit frees the period near that subject's BLS period.
Recorded by scripts/validate_known_planets.py at commit 0f6dbdc from a live query of the archive's default row then. Its timing columns stand; its depth and duration ratios came from the box measure and are superseded by the fit above.
| planet | P (d) | predicted epochs in span | recovered | mean timing offset (min) | depth ratio (box) | duration ratio (box) |
|---|---|---|---|---|---|---|
| pi Men c | 6.26784 | 5 | 5 | -8.0 | 0.91 | 0.62 |
Panel: volunteer-sensitive, volunteer-typical, volunteer-cautious
Weights: volunteer-cautious=0.633, volunteer-sensitive=0.667, volunteer-typical=0.667
Completeness is the fraction of injected transits recovered as a vetted candidate, with the consensus centred within half a transit duration of the injection.
| depth (ppm) | duration (h) | subjects | recovered | completeness |
|---|---|---|---|---|
| 300 | 1.0 | 20 | 0 | 0.00 |
| 300 | 2.0 | 20 | 0 | 0.00 |
| 300 | 4.0 | 20 | 0 | 0.00 |
| 1000 | 1.0 | 20 | 3 | 0.15 |
| 1000 | 2.0 | 20 | 16 | 0.80 |
| 1000 | 4.0 | 20 | 20 | 1.00 |
| 3000 | 1.0 | 20 | 20 | 1.00 |
| 3000 | 2.0 | 20 | 19 | 0.95 |
| 3000 | 4.0 | 20 | 20 | 1.00 |
False positives: 0.000 vetted candidates per empty subject (40 empty subjects).
| id | kind | weight |
|---|---|---|
| volunteer-sensitive | simulated | 0.600 |
| volunteer-typical | simulated | 0.600 |
| volunteer-cautious | simulated | 0.400 |
| claude-volunteer | claude_code | 0.500 |
| claude-skeptic | claude_code | 0.500 |
Skipped (unavailable here): none
585955d5e7a1d141…{
"setuhq_version": "0.1.0",
"created_at": "2026-10-21T11:44:52+00:00",
"python": "3.13.16",
"platform": "Linux-6.18.44-fc-v139-x86_64-with-glibc2.39",
"packages": {
"numpy": "2.5.4",
"scipy": "1.18.1",
"astropy": "8.0.2",
"matplotlib": "3.11.2",
"lightkurve": "2.6.0"
},
"config_name": "tess-pi-men-s1",
"config_sha256": "585955d5e7a1d141566ebb52d9c0859d3ae4d2131b67720df3320a3c57308ac6",
"subject_days": 13.0,
"search_scope": "subject",
"claude_prompt_version": "2026-10-16.1",
"sentinel_prompt_version": "2026-10-16.1",
"inputs": [
{
"source": "MAST",
"author": "SPOC",
"sector": 1,
"exptime_s": 120,
"flux_column": "pdcsap_flux",
"time_unit": "BTJD",
"lightkurve_version": "2.6.0",
"file": "tess2018206045859-s0001-0000000261136679-0120-s_lc.fits",
"file_sha256": "1eecffff3afa7e8c4ad763b6907e62447bacf339968292d86be45acd9bf1d609",
"target": "TIC 261136679",
"mission": "TESS"
}
],
"reviewers": [
{
"id": "volunteer-sensitive",
"kind": "simulated",
"weight": 0.6,
"calibration": "calibrated",
"calibration_note": "measured by injection"
},
{
"id": "volunteer-typical",
"kind": "simulated",
"weight": 0.6,
"calibration": "calibrated",
"calibration_note": "measured by injection"
},
{
"id": "volunteer-cautious",
"kind": "simulated",
"weight": 0.4,
"calibration": "calibrated",
"calibration_note": "measured by injection"
},
{
"id": "claude-volunteer",
"kind": "claude_code",
"weight": 0.5,
"calibration": "calibrated",
"calibration_note": "measured by injection",
"provider": "claude-code",
"provider_label": "Claude Code CLI (Claude, Anthropic)",
"model": "default",
"persona": "volunteer",
"prompt_version": "2026-10-16.1",
"models_reported": [],
"called_at": null,
"cached_answers": 2
},
{
"id": "claude-skeptic",
"kind": "claude_code",
"weight": 0.5,
"calibration": "calibrated",
"calibration_note": "measured by injection",
"provider": "claude-code",
"provider_label": "Claude Code CLI (Claude, Anthropic)",
"model": "default",
"persona": "skeptic",
"prompt_version": "2026-10-16.1",
"models_reported": [],
"called_at": null,
"cached_answers": 2
}
],
"skipped_reviewers": [],
"skipped_reviewers_detail": [],
"weights": {
"claude-skeptic": 0.5,
"claude-volunteer": 0.5,
"volunteer-cautious": 0.4,
"volunteer-sensitive": 0.6,
"volunteer-typical": 0.6
},
"weights_source": "docs/results/reviewer_weights_full_panel.json",
"counts": {
"light_curves": 1,
"subjects": 2,
"classifications": 10,
"consensus_events": 7,
"passed_vetting": 6
},
"sentinel_answers": {
"how": "stored answers only (cache/claude-code), reused because each subject image and prompt are byte-identical to the first run's; no Sentinel was asked again",
"prompt_image_dir": "the first run's runs/tess-pi-men-s1/subjects (the absolute path its prompts named)",
"answered_from_store": 4,
"expected": 4,
"not_answered": 0
},
"code": "f689e95",
"replaces": {
"created_at": "2026-10-17T23:30:07+00:00",
"had_pre_fix_note": true,
"candidates": [
7,
7
],
"fields_compared": [
"candidate_id",
"subject_id",
"t_start",
"t_end",
"t_center",
"duration_hours",
"score",
"n_reviewers",
"planet_fraction",
"reviewers",
"passed",
"flags",
"depth_ppm",
"snr",
"period_days",
"n_transits",
"fap",
"fap_label",
"fap_trials",
"fap_exceed",
"fap_tail",
"fit_t0",
"fit_depth_ppm",
"fit_t14_hours",
"fit_b",
"fit_k",
"fit_rho_star"
],
"differences": [],
"same_results": true
}
}
