A transit search where a panel of independent reviewers marks dips in blind-coded light curves, consensus is skill-weighted, and every candidate keeps its provenance. Built to follow the Planet Hunters CHEOPS workflow.
Probes only; Sentinels not run on this example. Sentinels run on Claude (Anthropic) by default; other providers are supported and labelled. Probes are deterministic matched-filter detectors.
Thresholds, weights and every input are written to manifest.json, so a result can be rerun exactly.
Passed candidates are the catalogue. Rejected and flagged events are kept on purpose, so a reader can see what the vetting decided and why.
Every reviewer's answer for every blind-coded subject. Disagreement is kept visible, because it is where the consensus is earned.

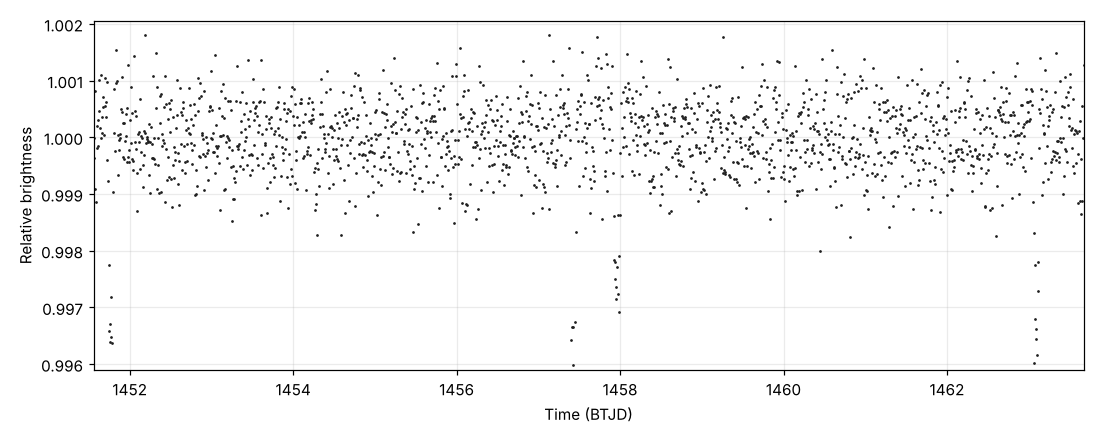

| reviewer | label | marks (BTJD) | rationale |
|---|---|---|---|
| volunteer-sensitive | potential planet | 1451.755–1451.784, 1457.402–1457.440, 1457.906–1457.986, 1463.067–1463.096 | simulated detector |
| volunteer-typical | potential planet | 1451.759–1451.787, 1457.412–1457.444, 1463.062–1463.101 | simulated detector |
| volunteer-cautious | potential planet | 1451.750–1451.783, 1457.403–1457.447, 1457.906–1457.985, 1463.070–1463.098 | simulated detector |

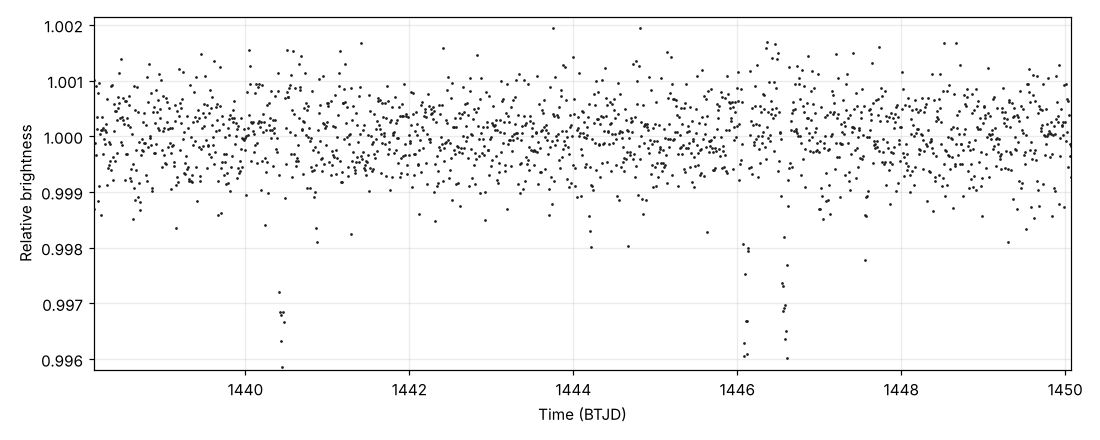

| reviewer | label | marks (BTJD) | rationale |
|---|---|---|---|
| volunteer-sensitive | potential planet | 1440.428–1440.460, 1440.465–1440.498, 1444.188–1444.227, 1446.084–1446.121, 1446.533–1446.613, 1447.554–1447.586 | simulated detector |
| volunteer-typical | potential planet | 1440.415–1440.460, 1446.079–1446.115 | simulated detector |
| volunteer-cautious | potential planet | 1440.428–1440.456, 1446.082–1446.121, 1446.538–1446.607 | simulated detector |
*Multi-planet system.* An M dwarf with three known transiting planets at 3.4, 5.7 and 11.4 days: several periods in one star.
Run runs/tess-toi-270-s5 (TESS SPOC 2-minute, sector 5; config configs/showcase/tess-toi-270-s5.toml, sha256 e60af3c4e98d4a76…; code v0.1.0-3-g0c029a2). Light curves: public TESS data from MAST tess2018319095959-s0005-0000000259377017-0125-s_lc.fits (sha256 739250df0d1ccda4…).
**Probes only; Sentinels not run on this example.** 7 dips (5 candidates, 2 flagged).
One light curve, three periods. It shows what the search does when a star has more than one planet, and which of them a 13-day subject can hold.
Published values: NASA Exoplanet Archive, table ps (every row for each planet), fetched 2026-10-22 (docs/results/showcase_reference.json). Each planet's transits are predicted from the archive row named below; SetuHQ's values are the medians over the dips on that ephemeris that were not rejected (the limb-darkened fit's Rp/R★, T14 and mid-transit depth, and the BLS period). Depth definitions differ between papers and this fit, so compare Rp/R★ and T14 first. A blank published value is one the archive does not hold for that paper; it is not compared.
Ephemeris from Kaye et al. 2022; compared with Günther et al. 2019 (https://ui.adsabs.harvard.edu/abs/2019NatAs...3.1099G/abstract).
| quantity | SetuHQ | Günther et al. 2019 | ratio | archive default (Kaye et al. 2022) | ratio |
|---|---|---|---|---|---|
| P (d) | n/a | 3.36008 | 3.35992 | ||
| Rp/R★ | n/a | 0.0300 | 0.0307 | ||
| T14 (h) | n/a | 1.39 | 1.29 | ||
| depth (ppm) | n/a | 901 |
The panel marked no dip on this planet's transits in this run, so nothing is compared.
Transits predicted in the stored light curve: 6; with a dip on them: 0 (0 dips; none).
Ephemeris from Kaye et al. 2022; compared with Günther et al. 2019 (https://ui.adsabs.harvard.edu/abs/2019NatAs...3.1099G/abstract).
| quantity | SetuHQ | Günther et al. 2019 | ratio | archive default (Kaye et al. 2022) | ratio |
|---|---|---|---|---|---|
| P (d) | 5.65610 | 5.66017 | 0.999 | 5.66051 | 0.999 |
| Rp/R★ | 0.0659 | 0.0583 | 1.132 | 0.0560 | 1.177 |
| T14 (h) | 1.85 | 1.66 | 1.117 | 1.68 | 1.101 |
| depth (ppm) | 4,090 | 3,394 | 1.205 |
Transits predicted in the stored light curve: 5; with a dip on them: 5 (5 dips; 5 passed; mean offset +6.6 min).
Ephemeris from Kaye et al. 2022; compared with Günther et al. 2019 (https://ui.adsabs.harvard.edu/abs/2019NatAs...3.1099G/abstract).
| quantity | SetuHQ | Günther et al. 2019 | ratio | archive default (Kaye et al. 2022) | ratio |
|---|---|---|---|---|---|
| P (d) | n/a | 11.38014 | 11.38194 | ||
| Rp/R★ | 0.0598 | 0.0514 | 1.163 | 0.0491 | 1.218 |
| T14 (h) | 2.50 | 2.15 | 1.162 | 2.12 | 1.180 |
| depth (ppm) | 3,254 | 2,645 | 1.230 |
Each 13-day subject holds only one of its transits, so the search found no period for these dips; vetting flags each off_ephemeris (open, not a candidate). The period is not compared.
Transits predicted in the stored light curve: 2; with a dip on them: 2 (2 dips; 2 flagged; mean offset -8.8 min).
A known planet found again is a check of the pipeline, not a discovery. TOI-270 b: none of 6 transits; TOI-270 c: 5 of 5 transits (5 candidates); TOI-270 d: 2 of 2 transits (2 flagged; no period).
Panel: volunteer-sensitive, volunteer-typical, volunteer-cautious
Weights: volunteer-cautious=0.633, volunteer-sensitive=0.667, volunteer-typical=0.667
Completeness is the fraction of injected transits recovered as a vetted candidate, with the consensus centred within half a transit duration of the injection.
| depth (ppm) | duration (h) | subjects | recovered | completeness |
|---|---|---|---|---|
| 300 | 1.0 | 20 | 0 | 0.00 |
| 300 | 2.0 | 20 | 0 | 0.00 |
| 300 | 4.0 | 20 | 0 | 0.00 |
| 1000 | 1.0 | 20 | 3 | 0.15 |
| 1000 | 2.0 | 20 | 16 | 0.80 |
| 1000 | 4.0 | 20 | 20 | 1.00 |
| 3000 | 1.0 | 20 | 20 | 1.00 |
| 3000 | 2.0 | 20 | 19 | 0.95 |
| 3000 | 4.0 | 20 | 20 | 1.00 |
False positives: 0.000 vetted candidates per empty subject (40 empty subjects).
| id | kind | weight |
|---|---|---|
| volunteer-sensitive | simulated | 0.600 |
| volunteer-typical | simulated | 0.600 |
| volunteer-cautious | simulated | 0.400 |
Skipped (unavailable here): none
e60af3c4e98d4a76…{
"setuhq_version": "0.1.0",
"created_at": "2026-10-22T18:00:10+00:00",
"python": "3.13.16",
"platform": "Linux-6.18.44-fc-v140-x86_64-with-glibc2.39",
"packages": {
"numpy": "2.5.4",
"scipy": "1.18.1",
"astropy": "8.0.2",
"matplotlib": "3.11.2",
"lightkurve": "2.6.0"
},
"config_name": "tess-toi-270-s5",
"config_sha256": "e60af3c4e98d4a76c4f1c707f6fed65f8156a4b4a0b363a9ab22a0e683ab7cac",
"subject_days": 13.0,
"search_scope": "subject",
"claude_prompt_version": "2026-10-16.1",
"sentinel_prompt_version": "2026-10-16.1",
"inputs": [
{
"source": "MAST",
"author": "SPOC",
"sector": 5,
"exptime_s": 120,
"flux_column": "pdcsap_flux",
"time_unit": "BTJD",
"lightkurve_version": "2.6.0",
"file": "tess2018319095959-s0005-0000000259377017-0125-s_lc.fits",
"file_sha256": "739250df0d1ccda4304e01213f1f0f53c24603e3e223ff646157b6721665a9d5",
"crowdsap": 0.9739536,
"flfrcsap": 0.92360622,
"target": "TIC 259377017",
"mission": "TESS"
}
],
"reviewers": [
{
"id": "volunteer-sensitive",
"kind": "simulated",
"weight": 0.6,
"calibration": "calibrated",
"calibration_note": "measured by injection"
},
{
"id": "volunteer-typical",
"kind": "simulated",
"weight": 0.6,
"calibration": "calibrated",
"calibration_note": "measured by injection"
},
{
"id": "volunteer-cautious",
"kind": "simulated",
"weight": 0.4,
"calibration": "calibrated",
"calibration_note": "measured by injection"
}
],
"skipped_reviewers": [],
"skipped_reviewers_detail": [],
"weights": {
"volunteer-cautious": 0.4,
"volunteer-sensitive": 0.6,
"volunteer-typical": 0.6
},
"weights_source": "docs/results/reviewer_weights_full_panel.json (Probes only)",
"panel": {
"mode": "probes_only",
"sentinels_configured": [],
"note": "Probes only; Sentinels not run on this example"
},
"code": "v0.1.0-3-g0c029a2",
"counts": {
"light_curves": 1,
"subjects": 2,
"classifications": 6,
"consensus_events": 7,
"passed_vetting": 7
}
}
